Malvern Instruments


Industrial



Supporting Malvern with accelerated Feasibility Design

Niagara

Fluidic Flow Cell for Laser Diffraction Particle Size Analysis

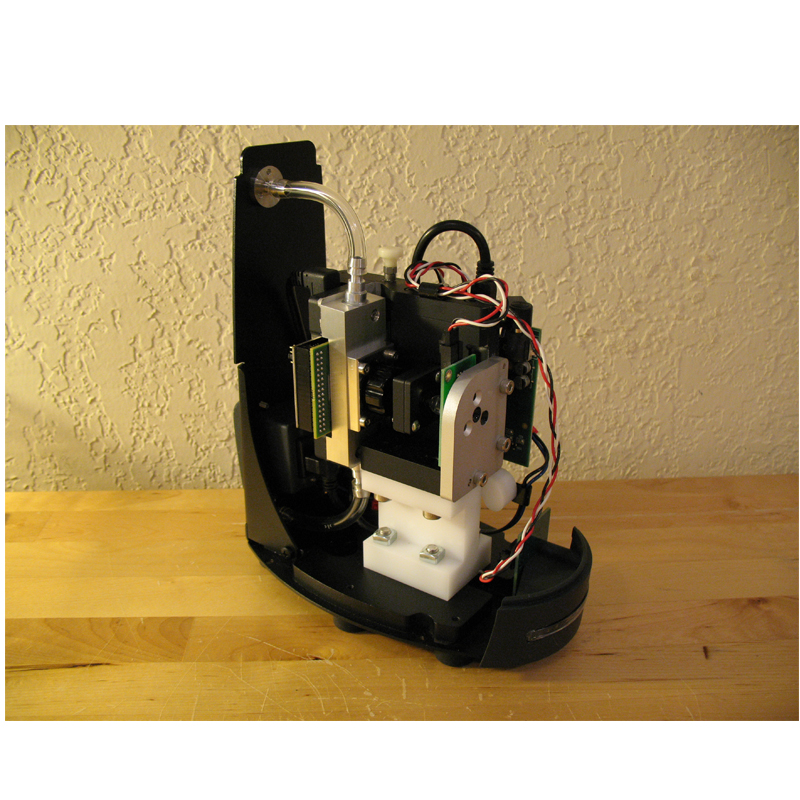

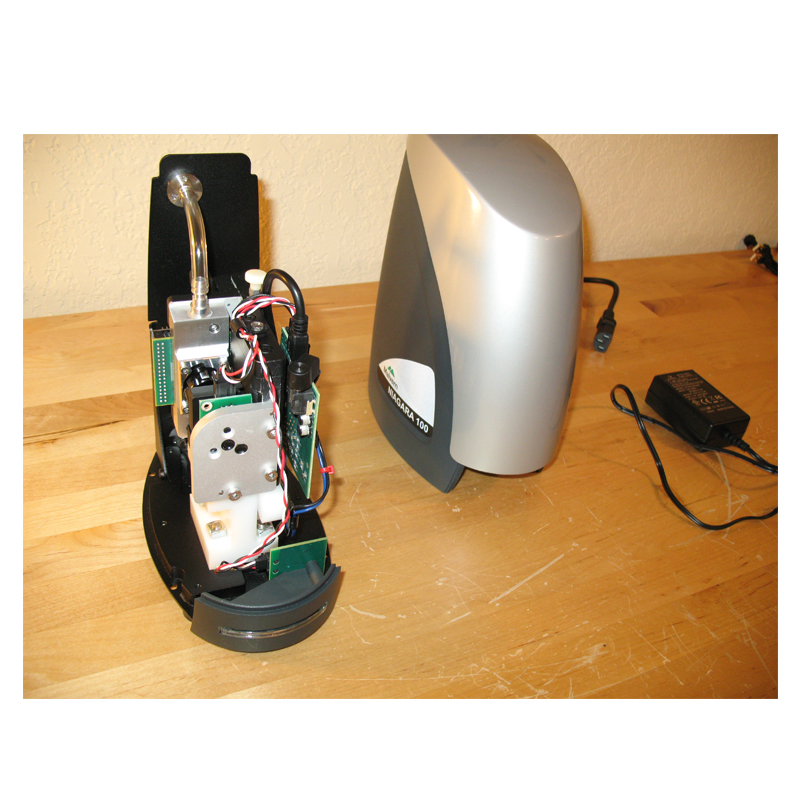

BlackHägen worked closely for some years with the "skunkworks" division of Malvern Instruments, a leading British Scientific Instruments manufacturer, supporting the conceptualization and development of new high-precision instruments, of which Niagara was one such project. BH developed the industrial and mechanical design for Niagara, including the design of an alignment fixture for the optical engine sub-assembly, and supported Malvern's internal team on overall systems design and design of the flow cell module.

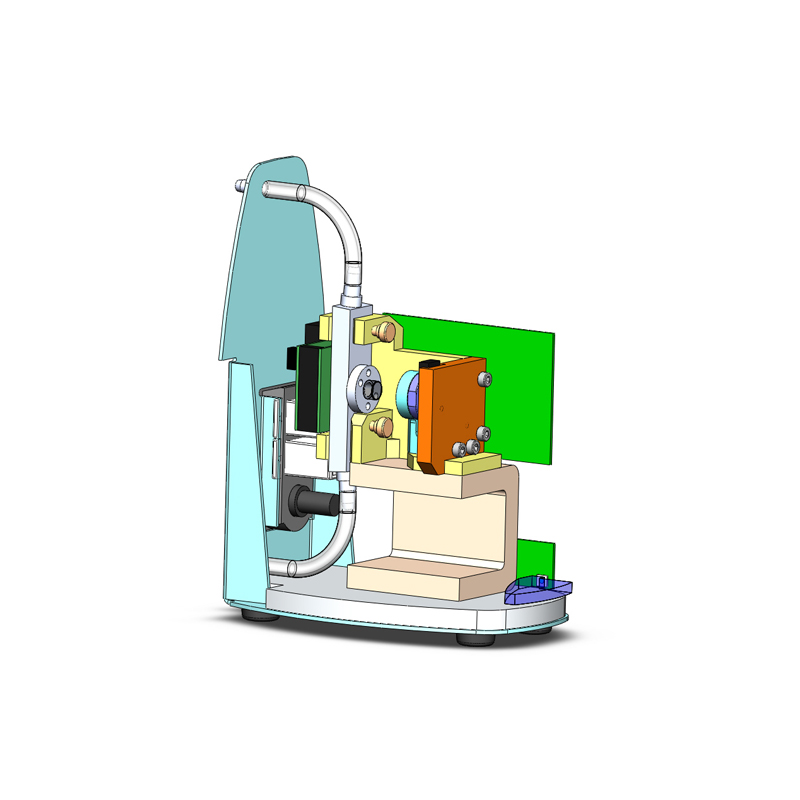

BH developed the high-precision chassis on which the optical engine and fluidic-cell was aligned and mounted, including electronic and user interfaces and the external housing. BH procured and assembled a large number of fully-functional prototypes, including the packaging for shipment to the client and onto potential customers, essentially a limited first production run.

Duration- 4 months
